舍弗勒参加2019汉诺威工业博览会-22号展厅D43展位 舍弗勒新型导轨封盖条可将安装时间缩短90%

Pressrelease Stage Image

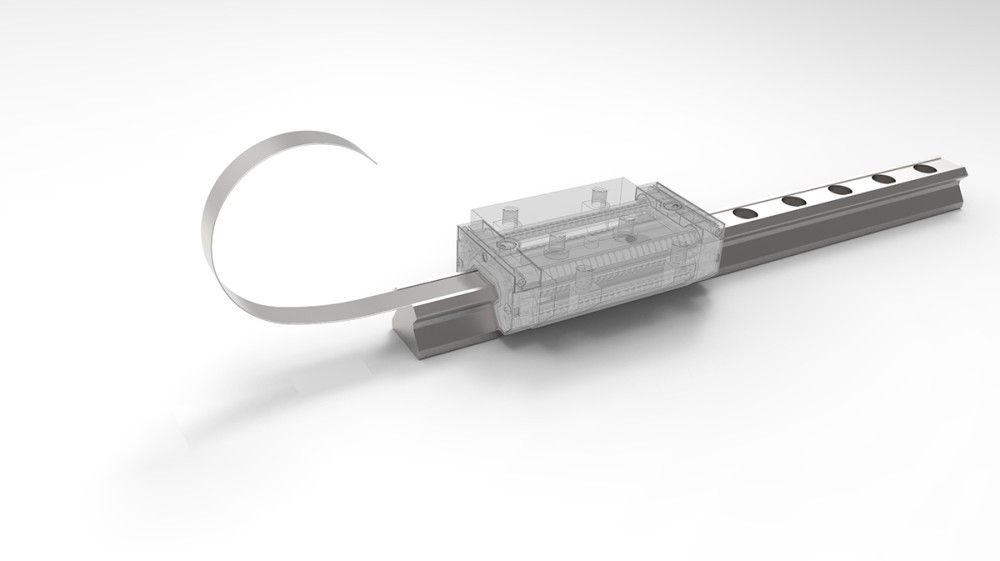

新型嵌入式钢封盖条:柔韧易安装,安装到位后具有高承载能力。

2019-03-08 | 施韦因富特

  • 安装多轴系统时,可重复使用的嵌入式封盖条有效缩短作业循环周期
  • 固定螺钉便于操作,即使滑块安装到位后仍可进行调整
  • 沉头螺钉位于导轨末端,这样整个导轨长度可以得到充分利用

舍弗勒直线运动技术专家针对直线导轨开发了创新型ADE钢封盖条,打造简单实用的安装解决方案。该封盖条可以轻松嵌入导轨凹槽,使用螺钉即可固定到位。相比之前的解决方案,该方案最多可减少90%的安装时间。当应用于机械工程领域时,更可大幅减少多轴系统的组装时间。

目前,新封盖条可用于RUE 35、45和55直线循环滚柱导轨系统,后续会逐步匹配其他型号。该封盖条也可重复使用,在初始安装操作和维护阶段具有非常明显的优势:有别于其他解决方案,ADE封盖条无需在设备制造阶段装入导轨,这一步骤可在之后进行。即使在滑块安装到位后,轴上所有固定螺钉依然易于操作,仍可根据需要随时进行调整。滑块的密封唇不会与导轨沉头孔接触,以避免损坏密封件。导轨安装完毕并完成形位公差检查后,即可将封盖条插入,嵌入到导轨滑块密封唇下方。使用导轨末端的沉头螺钉即可将封盖条固定于凹槽内,这意味着整个导轨的长度都得可以到充分利用。

对于单件式导轨,特制的封盖条会随导轨和滑块一同提供;对于拼接式导轨,封盖条会圈成卷,并与滑块和导轨一起打包交付。

Publisher: 舍弗勒投资(中国)有限公司
Country: 中国
